Plug-and-play Van and Trailer Installation

Plug-and-play Van and Trailer Installation

INST12VAN Installation

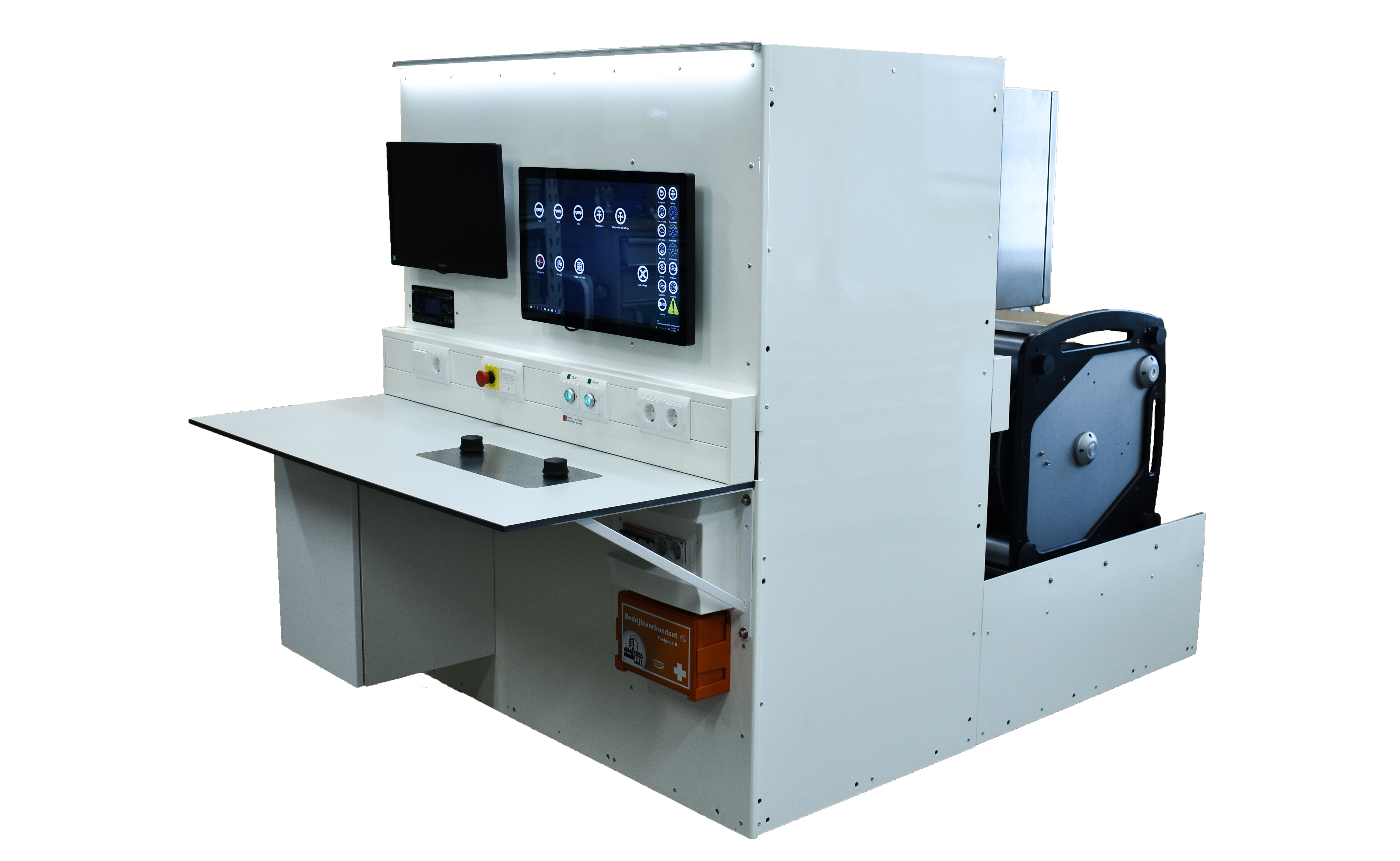

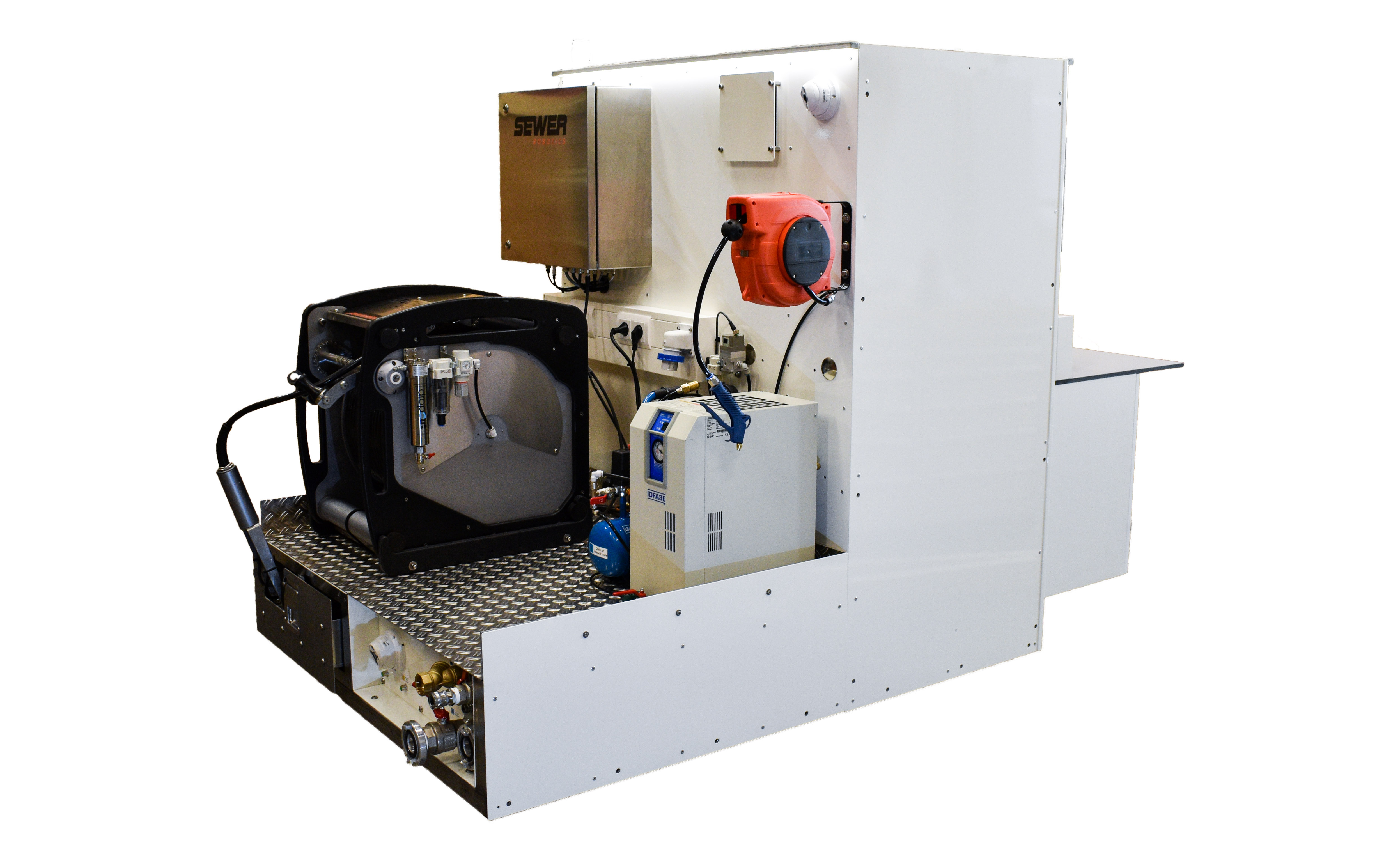

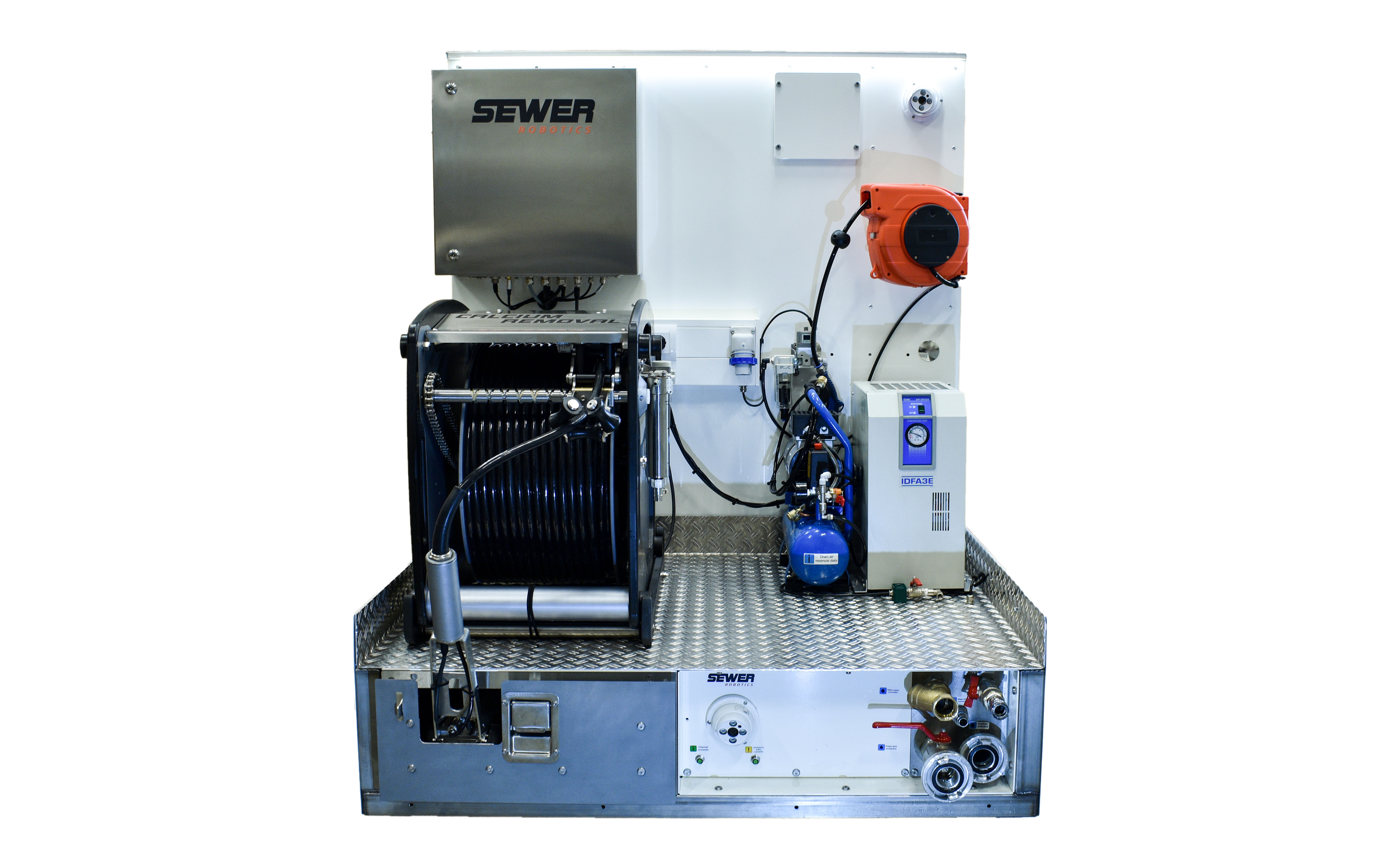

The plug-and-play Van and Trailer installation provides an ergonomic and operator friendly installation that easily slides in most Vans and Trailers. The installation features water- and power supplies, as well as a desk with control unit, rear view camera, robot storage and just needs to be anchored and connected to the vehicle’s batteries.

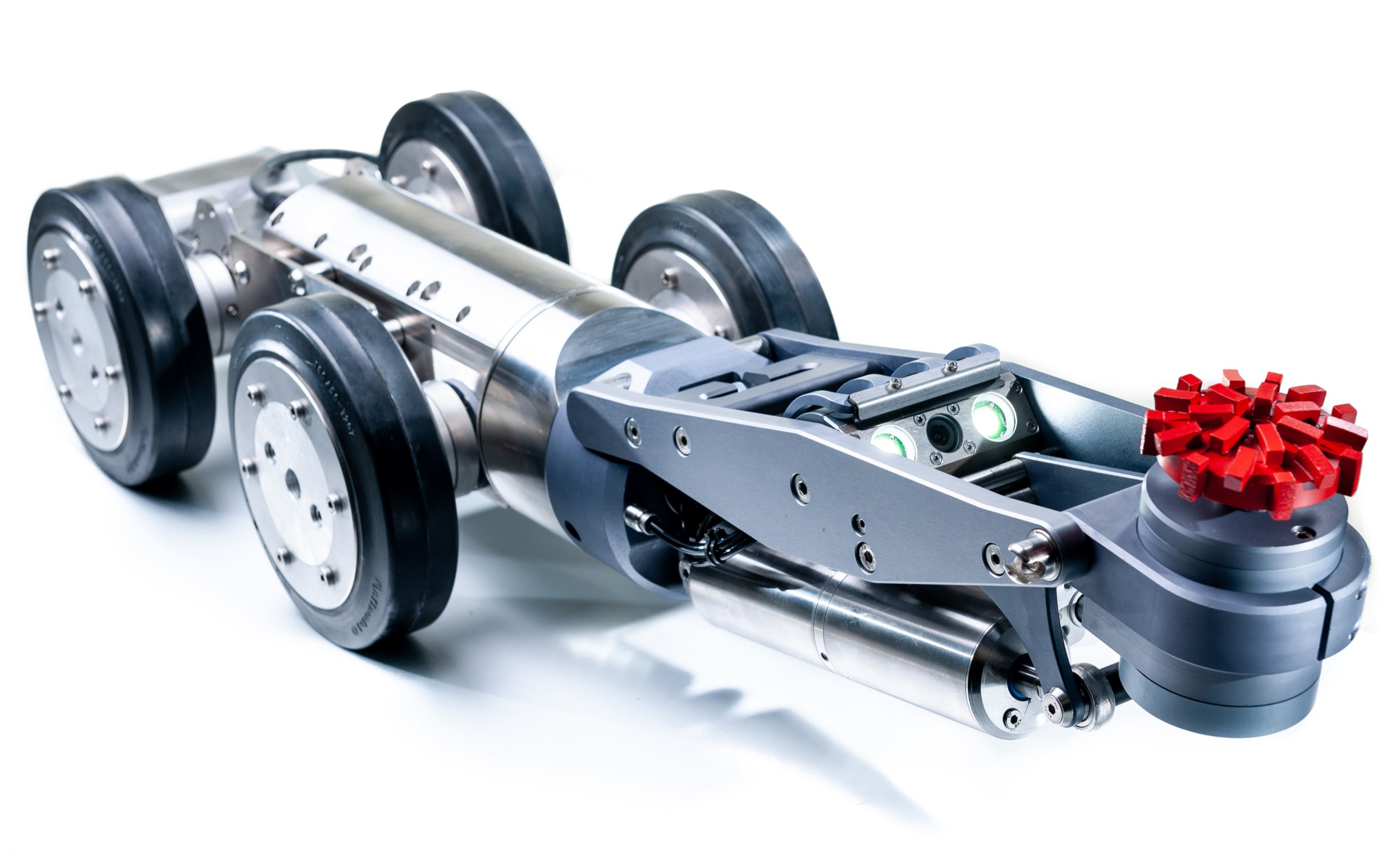

The plug-and-play van installation is compatible with the MH60 (75m/250ft) and MH200 (150m/500ft) cable reels and all robots and job-specific modules for: Lateral Reinstatement Cutting, High Pressure Obstructions Removal, CCTV Inspection and Spot Repair Installations.

The installation can also be used with excisting CCTV Inspection and cutter systems!



Contact ID-tec or your local distributor now to inquire about current stock and attractive pricing.

Download brochure

Plug-and-play Van and Trailer Installation

INST12VAN Installation

The plug-and-play Van and Trailer installation provides an ergonomic and operator friendly installation that is compatible with all cable reels, robots and job-specific modules for: Lateral Reinstatement Cutting, High Pressure Obstructions Removal, CCTV Inspection and Spot Repair Installations. The installation is suitable for most vans and trailers.

Specifications

Compatible vehicles: most Vans and Trailers
Applications: (Electric) Reinstatement Cutting, Water Jet Cutting, CCTV Inspection and Spot Repair Installations
Compatible cable reels: MH60 (75m/ 250ft), MH200 (150m/ 500ft)
Water supply: 1000L (264gal) or larger
Power supply: 230V, 110V (50-60hz)
Scope of use: 150 – 1000mm pipelines (6 – 40”)
Compatible inspection software: WinCan, POSM and others

Features

  • Easy installation

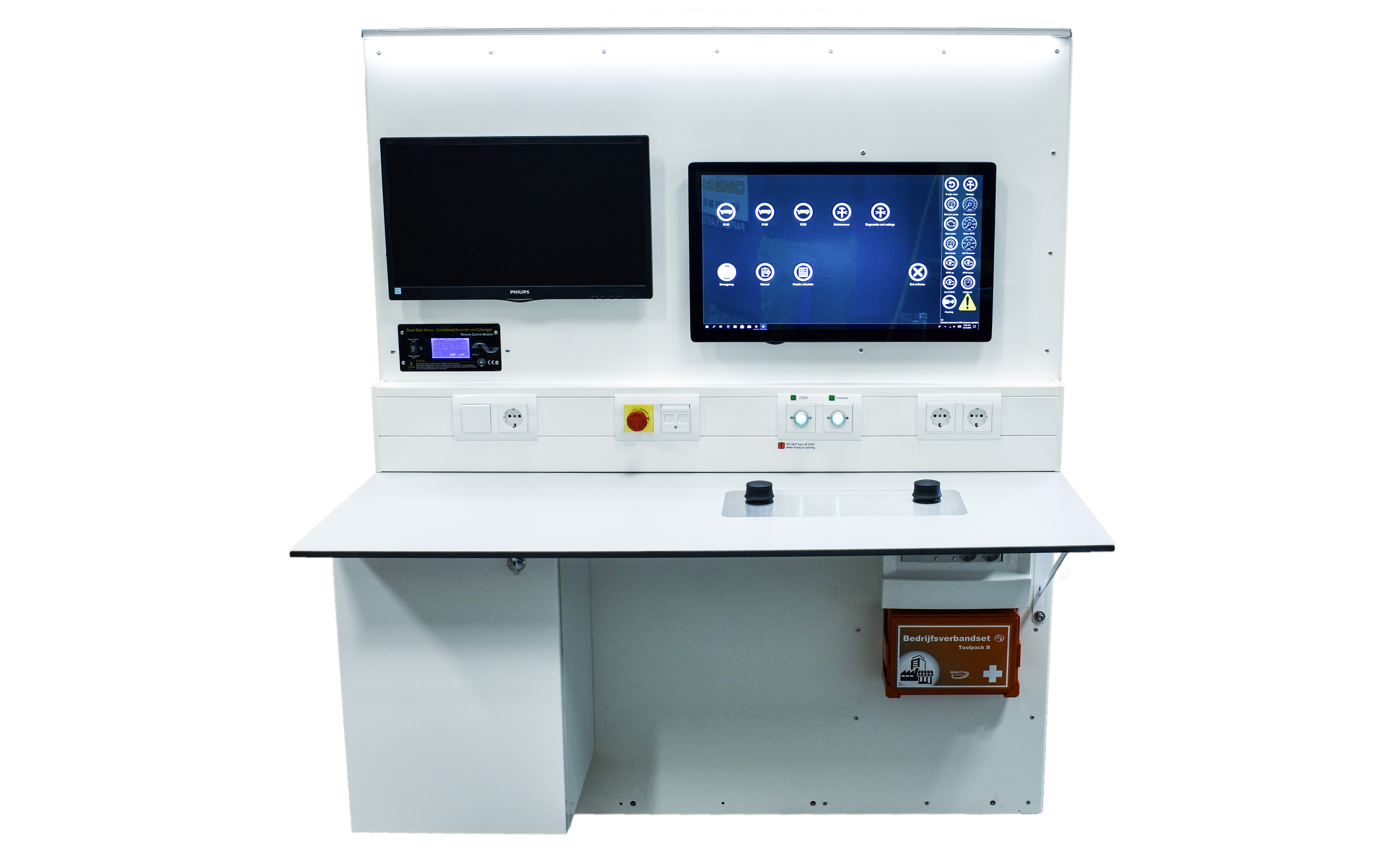

  • Ergonomic desk with control unit
  • Multi-functional
  • Robot storage
  • Rear view camera

Specifications

Compatible vehicles: most Vans and Trailers
Applications: (Electric) Reinstatement Cutting, Water Jet Cutting, CCTV Inspection and Spot Repair Installations
Compatible cable reels: MH60 (75m/ 250ft), MH200 (150m/ 500ft)
Water supply: 1000L (264gal) or larger
Power supply: 230V, 110V (50-60hz)
Scope of use: 150 – 1000mm pipelines (6 – 40”)
Compatible inspection software: WinCan, POSM and others

Features

  • Easy installation
  • Ergonomic desk with control unit
  • Multi-functional
  • Robot storage
  • Rear view camera
