Cable and High Pressure Hose Reels

Cable and High Pressure Hose Reels

MH200R - MH200HD

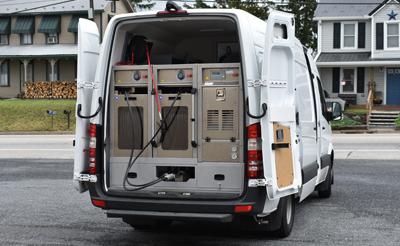

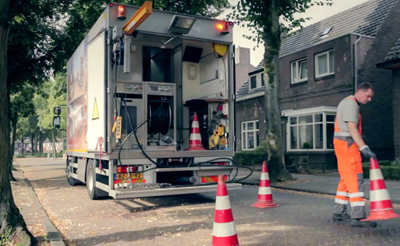

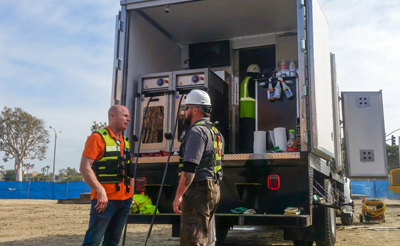

The MH200 Hybrid Cable and High Pressure Hose Reels are installed in heavy duty Stainless steel frames with standard 400' (135m) of cable and high pressure hose. The reels feature cross- lead spindles, adjustable speeds and distance measurement and are controlled individual or simultaneous from the reels, the Control Unit or a remote control.

Hybrid cable reel

The kevlar protected hybrid cable provides wiring for power, communication and video and an air supply hose for the pneumatic movements and positive pressure inside the Transporter and Modules.

High pressure hose reel

The high-pressure hose reel is connected to the high pressure unit and supplies water under pressure for precision water jet cutting or reinstatement cutting operations. The standard 3/8" high pressure hose can be used with water pressures up to 14,500psi(1000bar) and special hoses are available for pressures up to 32,000psi(2200bar).

Contact ID-tec or your local distributor for more information!

Download brochure

Cable and High Pressure Hose Reels

MH200R - MH200HD

The MH200 Hybrid Cable and High Pressure Hose Reels are installed in heavy duty Stainless steel frames with standard 400' (135m) of cable and high pressure hose. The reels feature cross- lead spindles, adjustable speeds and distance measurement and are controlled individual or simultaneous from the reels, the Control Unit or a remote control.

Specifications

Standard length: 400' (135m)
Dimensions DxWxH: 33”x20”x40” (820x500x1064mm)

Features

  • Controlled from reels, control unit or remote control
  • Distance measurement
  • Cross lead spindle
  • Adjustable speeds
  • Torque regulated synchronization
  • Loop detection sensor
  • Stainless steel frame
  • Double wired remote control with emergency stop

Specifications

Standard length: 400' (135m)
Dimensions DxWxH: 33”x20”x40” (820x500x1064mm)

Features

  • Controlled from reels, control unit or remote control
  • Distance measurement
  • Cross lead spindle
  • Adjustable speeds
  • Torque regulated synchronization
  • Loop detection sensor
  • Stainless steel frame
  • Double wired remote control with emergency stop
