High Pressure Units

High Pressure Units

HDE - HDM

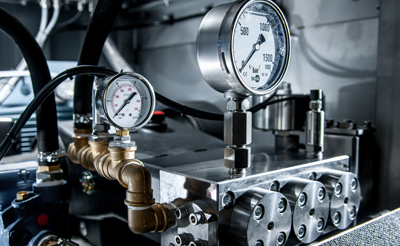

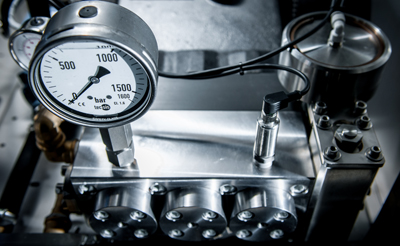

ID-TEC high pressure units allow continuous pressure control to adjust to different pipe materials and changing conditions. High pressure units are available with maximum pressures ranging from 7,250psi to 32,000psi (500-2200bar) depending applications and are driven by a combustion engine or electrical motor in combination with PTO generator.

Electric high pressure unit (HDE)

The electric driven high pressure units work in combination with a generator driven by a vehicle's PTO (Power Take Off) to generate electricity. That electricity powers the pump motor, the system and vehicle accessories.

Pros:

  • Weights less
  • Lower in noise
  • Requires less installation space
  • More efficient
  • One engine running (cleaner)

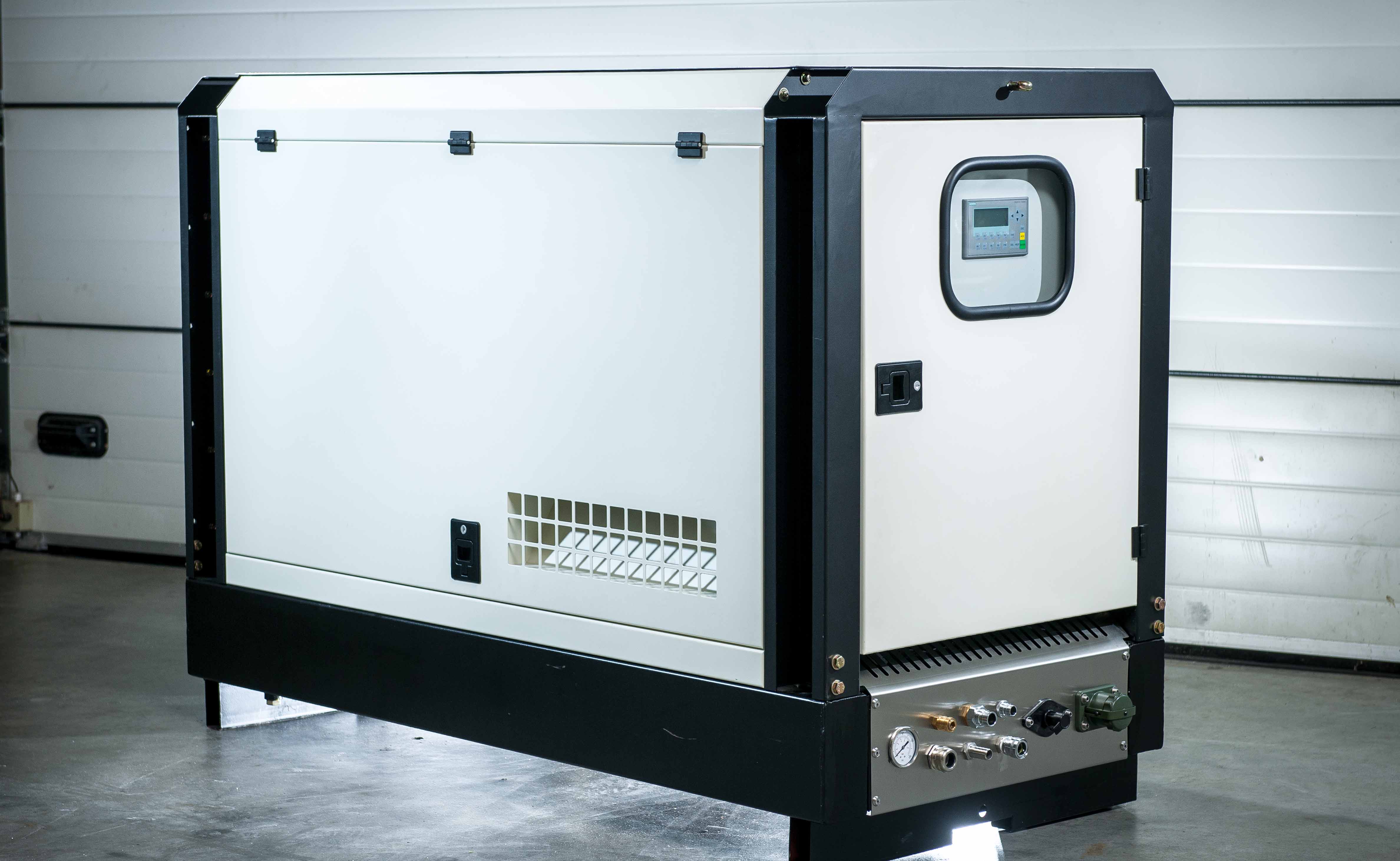

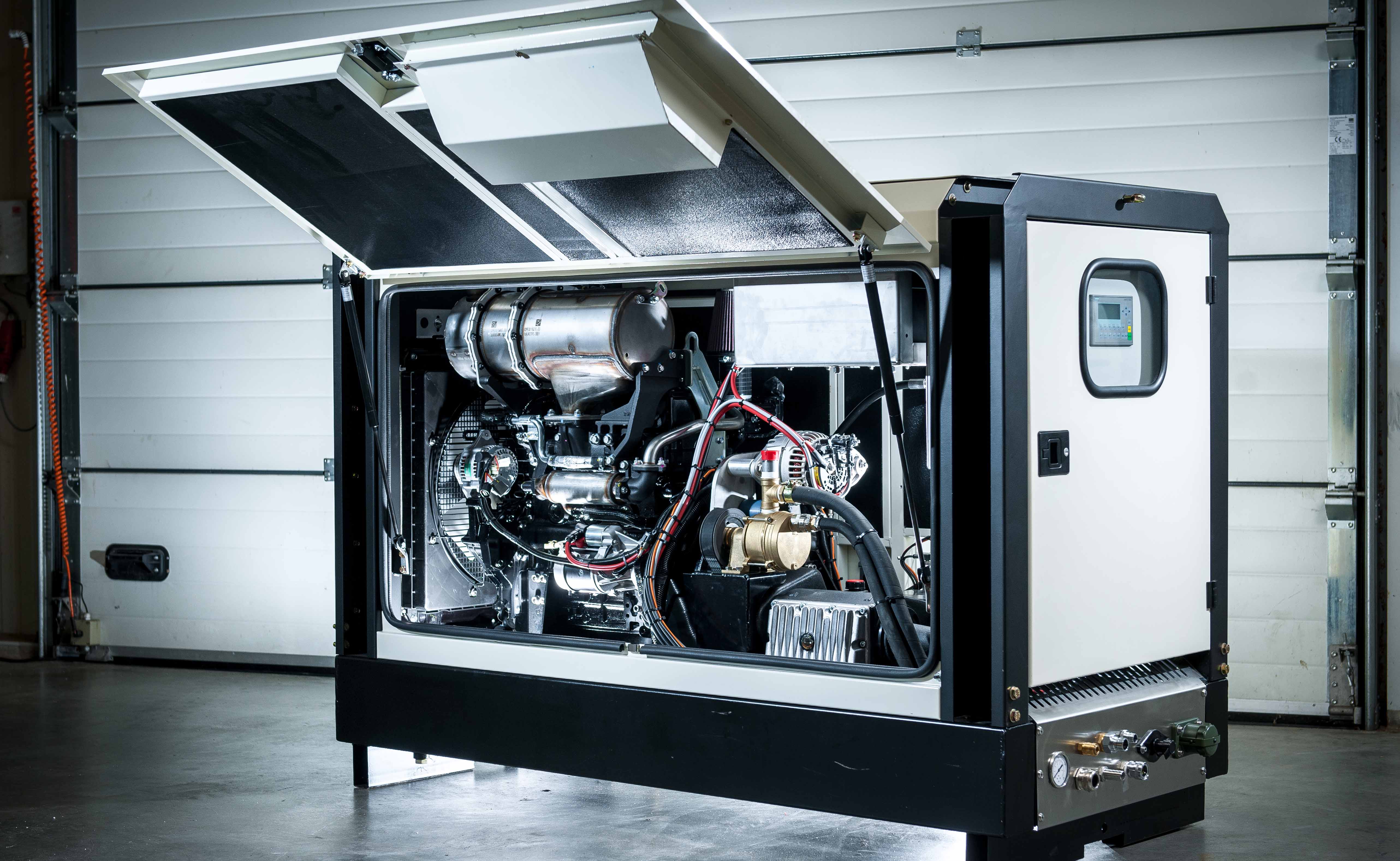

Combustion high pressure unit (HDM)

Combustion engine driven high pressure units feature Diesel or Gasoline motors to drive pumps. An inverter or generator is required to supply electricity for the system and vehicle accessories.

Pros:

  • Stand- alone
  • Higher pressures possible



Contact ID-tec or your local distributor for more information!

Download brochure

High Pressure Units

HDE - HDM

ID-TEC high pressure units allow continuous pressure control to adjust to different pipe materials and changing conditions. High pressure units are available with maximum pressures ranging from 7,250psi to 32,000psi (500-2200bar) depending applications and are driven by a combustion engine or electrical motor in combination with PTO generator.

Features

  • Water pressure adjustable from control unit
  • Electronic over and under pressure monitoring
  • Electronic water pressure monitoring
  • Double wired remote control with emergency stop
  • Heavy-duty materials

Features

  • Water pressure adjustable from control unit
  • Electronic over and under pressure monitoring
  • Electronic water pressure monitoring
  • Double wired remote control with emergency stop
  • Heavy-duty materials

Available High Pressure Units

HP-unit Max. Pressure Max. Flow Powered Approx. weight Approx. dimensions
HDM19 7,250psi (500bar) 4.0gpm (15ltr/min.) Gasoline 484lbs (220kg) L32"xW20"xH42" (1064x500x1125mm)
HDE23 7,250psi (500bar) 5.6gpm (21ltr/min.) Electric (PTO generator) 484lbs (220kg) L32"xW20"xH42" (1064x500x1125mm)
HDE37 14,500psi (1000bar) 5.3gpm (20ltr/min.) Electric (PTO generator) 617lbs (280kg) L30"xW35"xH35" (760x880x880mm)
HDM37 14,500psi (1000bar) 5.3gpm (20ltr/min.) Diesel (TIER 4) 2150lbs (970kg) L80"xW30"x45" (20140x750x1150mm)
HDE37 (flushing) 2,030psi (140bar) 36gpm (135ltr/min) Electric (PTO) 617lbs (280kg) L30"xW35"xH35" (760x880x880mm)
HDM105 32,000psi (2200bar) 5.6gpm (23ltr/min.) Diesel (TIER 4) 3858lbs (1750kg) L105"xW43"xH73" (2670x1080x1856mm)
