Lateral Reinstatement Cutting Module

Lateral Reinstatement Cutting Module

HA195 - 10"-28" (250-700)

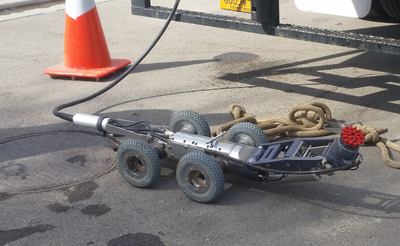

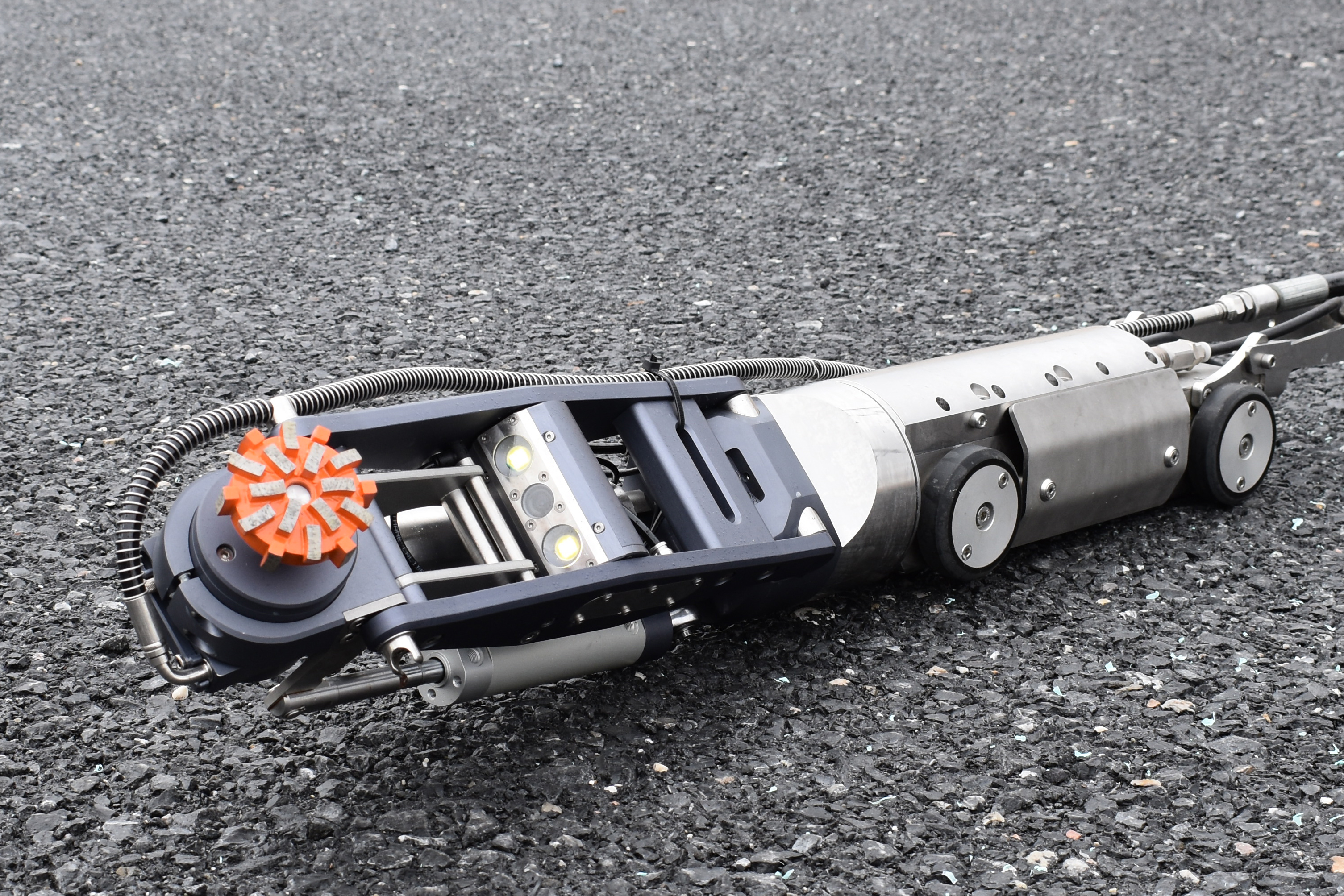

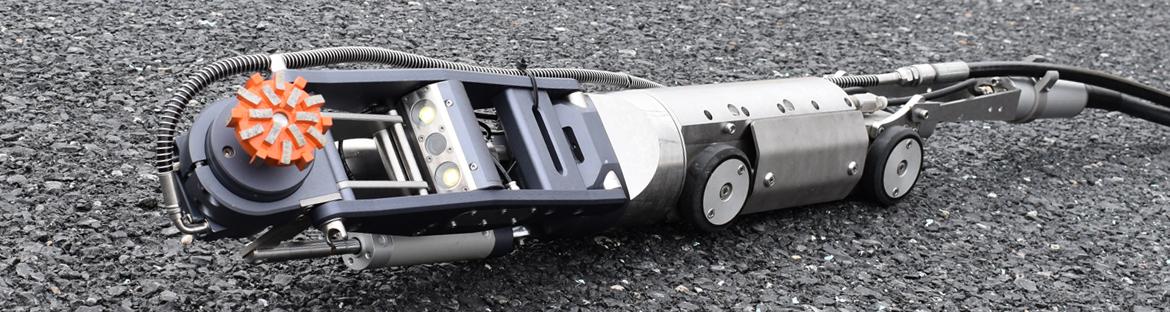

The HA195 lateral reinstatement cutter module is compatible with the all wheel driven R160 Transporter and built for lateral reinstatement and cutting protruding taps and services from 10" - 28" (250-700mm) pipelines. The 195 cutter arm features 11" (270mm) ram lift and 90 degrees pivoting. ID-tec's powerful, water driven, cutter motors deliver 3.4 or 7.8 Horse Power for fast lateral reinstatement with precision and a smooth cut.

The water lubricates the ceramic bearings and provides cooling to the cutter bit, which increases the life expectancy of the equipment.



Contact ID-tec or your local distributor for more information!

Download brochure

Lateral Reinstatement Cutting Module

HA195 - 10"-28" (250-700)

The HA195 lateral reinstatement cutter module is compatible with the all wheel driven R160 Transporter and built for lateral reinstatement and cutting protruding taps and services from 10" - 28" (250-700mm) pipelines. The 195 cutter arm features 11" (270mm) ram lift and 90 degrees pivoting. ID-tec's powerful, water driven, cutter motors deliver 3.4 or 7.8 Horse Power for fast lateral reinstatement with precision and a smooth cut.

Specifications

Scope of use: 10" - 28" (250-700mm)
Cutter motor: 3.4HP (@25,000rpm) or 7.8HP (@4,000rpm)
Ram lift: 11" (270mm)
Motor pivoting: 90°

Features

  • Compatible with R160 Transporter
  • Compatible with Diamond and Carbide cutting and milling bits
  • Rotating color camera
  • Air and water lens cleaner
  • Adjustable LED lighting
  • Speed adjustable 4 axis movements
  • Heavy-duty materials
