Lateral Reinstatement Cutting Module

Lateral Reinstatement Cutting Module

HA165 - 8"-15" (200-375mm)

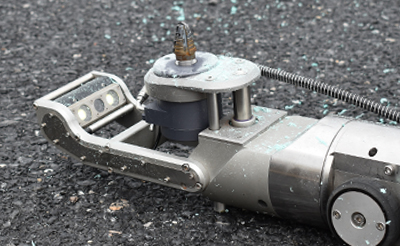

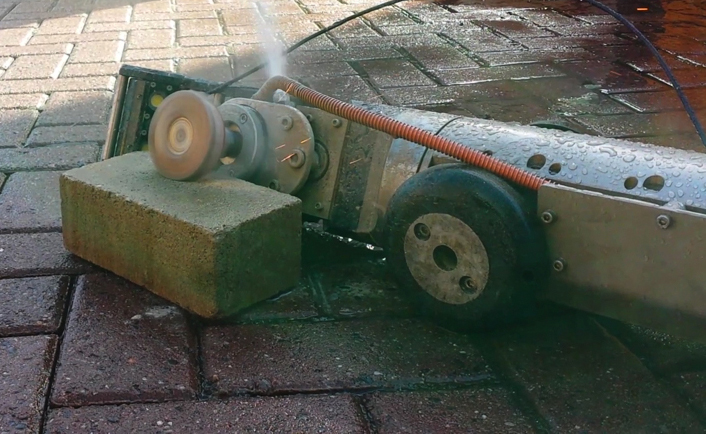

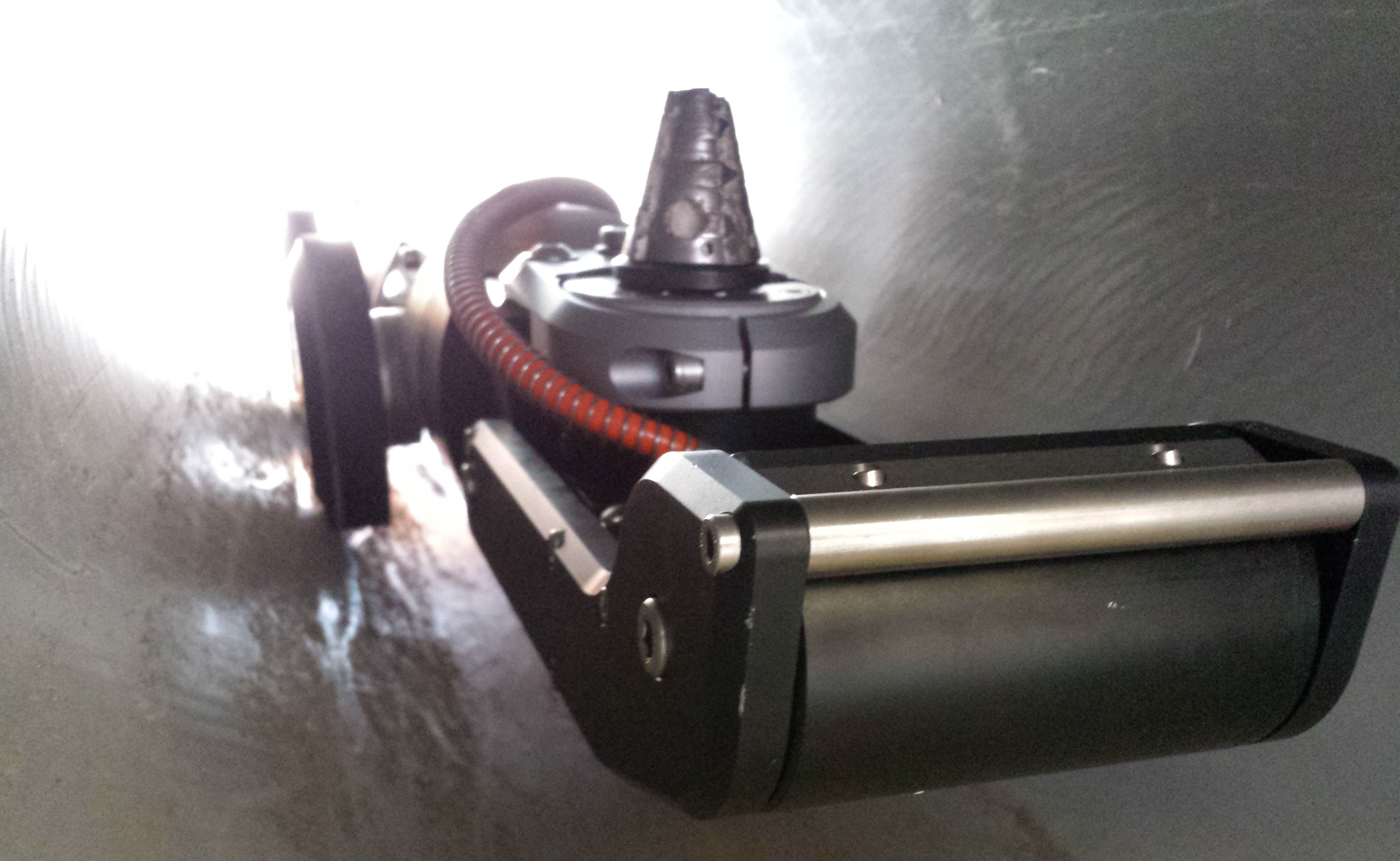

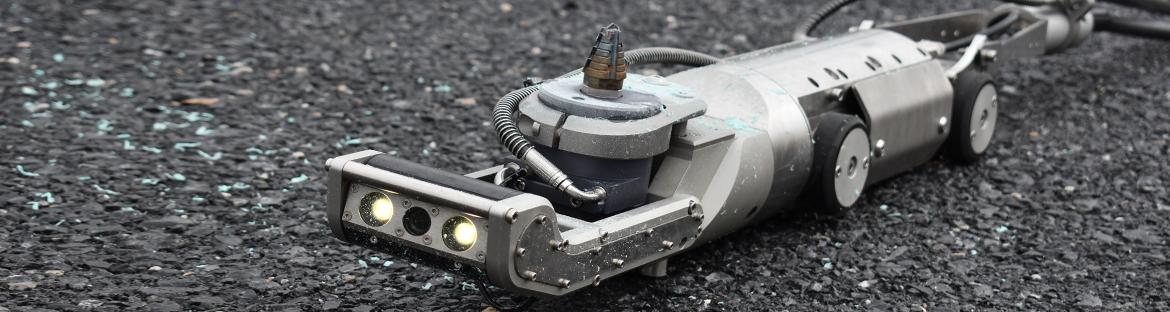

The HA165 lateral reinstatement cutter module features an infinite rotating, front- placed, color camera and is compatible with the all wheel driven R160 Transporter for lateral reinstatement and cutting protruding taps and services from 8" - 15" (200-375mm) pipelines. The HA165 module features a 3" (75mm) vertical lift and can be used with IDTec's powerful, water driven, cutter motors that deliver 3.4 or 7.8 Horse Power for fast lateral reinstatement with precision and a smooth cut.

The water lubricates the ceramic bearings and provides cooling to the cutter bit, which increases the life expectancy of the equipment.



Contact ID-tec or your local distributor for more information!

Download brochure

Lateral Reinstatement Cutting Module

HA165 - 8"-15" (200-375mm)

The HA165 lateral reinstatement cutter module features an infinite rotating, front- placed, color camera and is compatible with the all wheel driven R160 Transporter for lateral reinstatement and cutting protruding taps and services from 8" - 15" (200-375mm) pipelines. The HA165 module features a 3" vertical lift and can be used with ID-tec's powerful, water driven, cutter motors that deliver 3.4 or 7.8 Horse Power for fast lateral reinstatement with precision and a smooth cut.

Specifications

Scope of use: 8"-15" (200-375mm)
Cutter motor: 3.4HP (@25,000rpm) or 7.8HP (@4,000rpm)
Cutting motor lift: 3" (75mm)

Features

  • Compatible with R160 Transporter

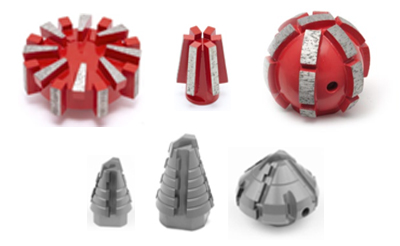

  • Compatible with Diamond and Carbide cutting and milling bits
  • Infinite rotating color camera
  • Water lens cleaner
  • Adjustable LED lighting
  • Speed adjustable 3 axis movements
  • Heavy-duty materials

Specifications

Scope of use: 8"-15" (200-375mm)
Cutter motor: 3.4HP (@25,000rpm) or 7.8HP (@4,000rpm)
Cutting motor lift: 3" (75mm)

Features

  • Compatible with R160 Transporter
  • Compatible with Diamond and Carbide cutting and milling bits
  • Infinite rotating color camera
  • Water lens cleaner
  • Adjustable LED lighting
  • Speed adjustable 3 axis movements
  • Heavy-duty materials
