CCTV Inspection and Spot Repair Module

CCTV Inspection and Spot Repair Module

CAM125 - 6"-15" (150-375mm)

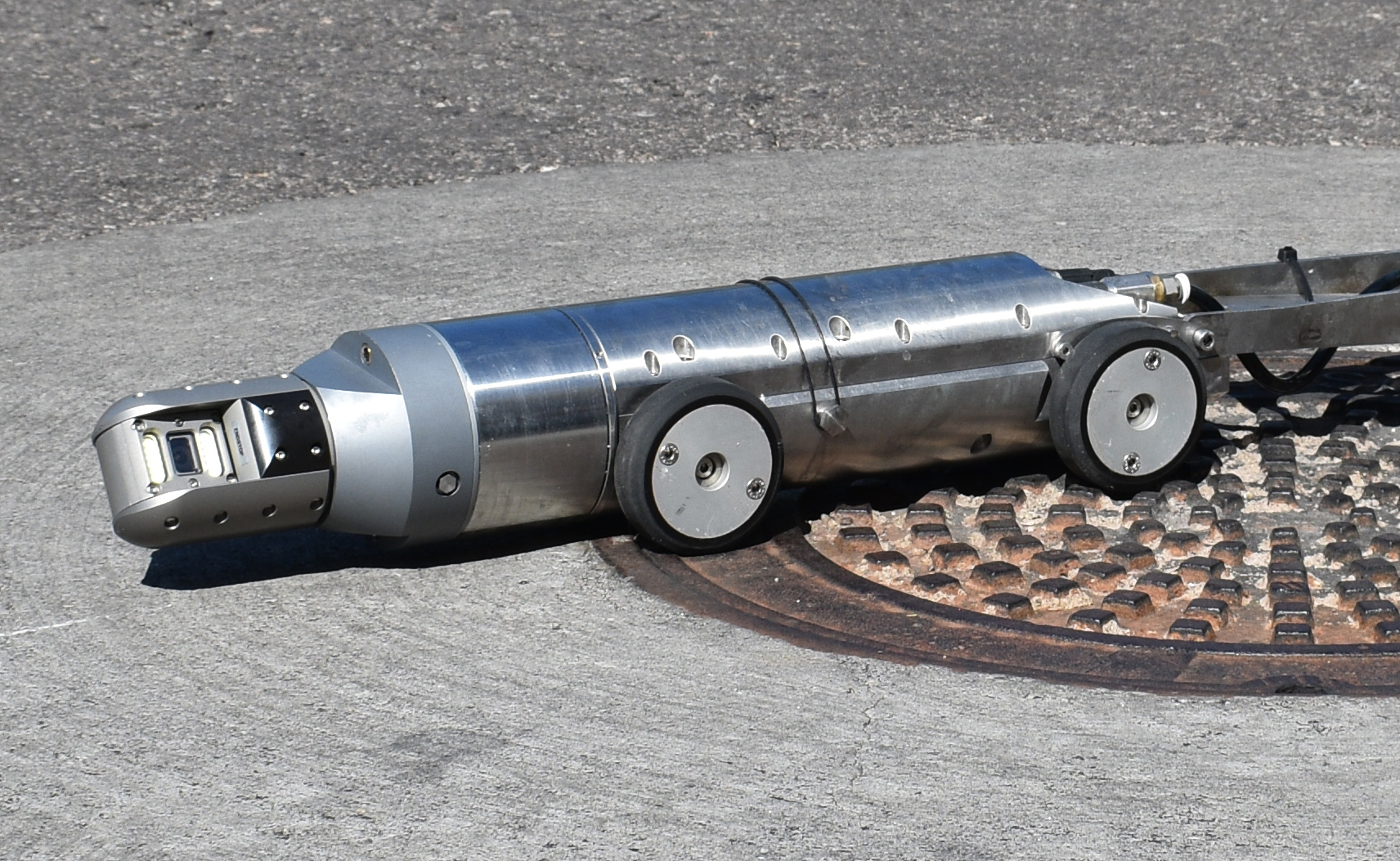

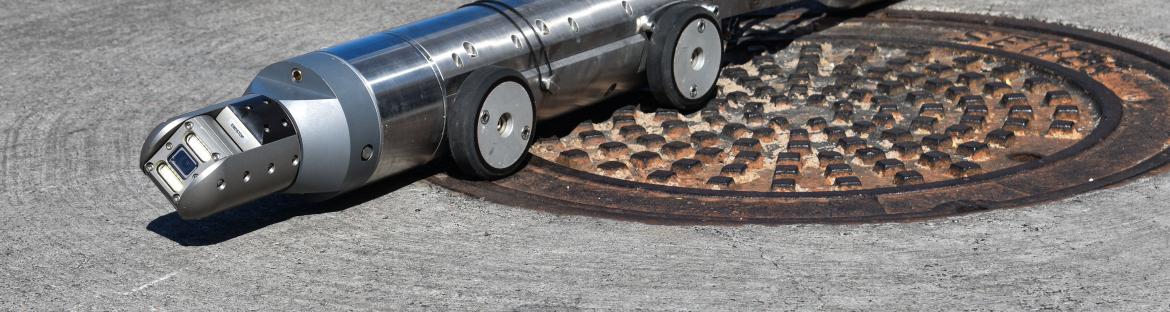

The CAM125 CCTV inspection and spot repair module features a pan and tilt camera and an air coupling at the front for CCTV main line inspections and spot repair installations in 6" - 15" (150-375mm) pipelines. The control software can be used in combination with NASSCO PACP licensed WinCan and POSM inspection software.

Spot repair installations

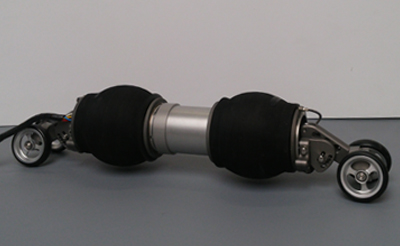

The CAM125 inspection module features a a pan & tilt camera and a pressure adjustable air coupling at the front, operated from the control unit to connect with the QLP160 spot repair and pressure testing packer, as well as a variety of other packers suitable for grouting and the installation of mechanical repair sleeves and part liners.

Contact ID-tec or your local distributor for more information!

Download brochure

CCTV Inspection and Spot Repair Module

CAM125 - 6"-15" (150-375mm)

CCTV inspection of 6” (150mm) and larger pipelines can be done with the CAM125 CCTV inspection and spot repair module. The CAM125 is developed for main line CCTV inspection and features a pressure adjustable air coupling at the front for compatibility with most spot repair packers.

Specifications

Scope of use: 6"-15" (150-375mm)
Air coupling: max. 145 psi (10bar)
Camera Pan: max. 230 degrees
Location transmitter: 512 MHz

Features

  • Compatible with R125 transporter
  • Air coupling for spot repair packers
  • Infinite rotating color camera
  • Manual focus
  • Auto horizon adjustment
  • Intensity adjustable LED lighting

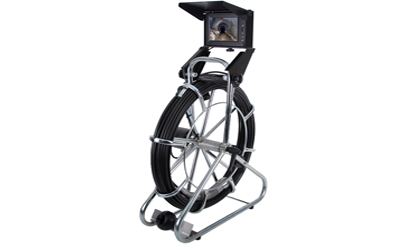

  • Camera compatible with push cable
  • Compatible with NASSCO PACP licensed POSM and WinCan
  • Heavy-duty materials
  • Laser crack measurement (optional)

Specifications

Scope of use: 6"-15" (150-375mm)
Air coupling: max. 145 psi (10bar)
Camera Pan: max. 230 degrees
Location transmitter: 512 MHz

Features

  • Compatible with R125 transporter
  • Air coupling for spot repair packers
  • Infinite rotating color camera
  • Manual focus
  • Auto horizon adjustment
  • Intensity adjustable LED lighting
  • Camera compatible with push cable
  • Compatible with NASSCO PACP licensed POSM and WinCan
  • Heavy-duty materials
  • Laser crack measurement (optional)
