Transporter (crawler)

Transporter (crawler)

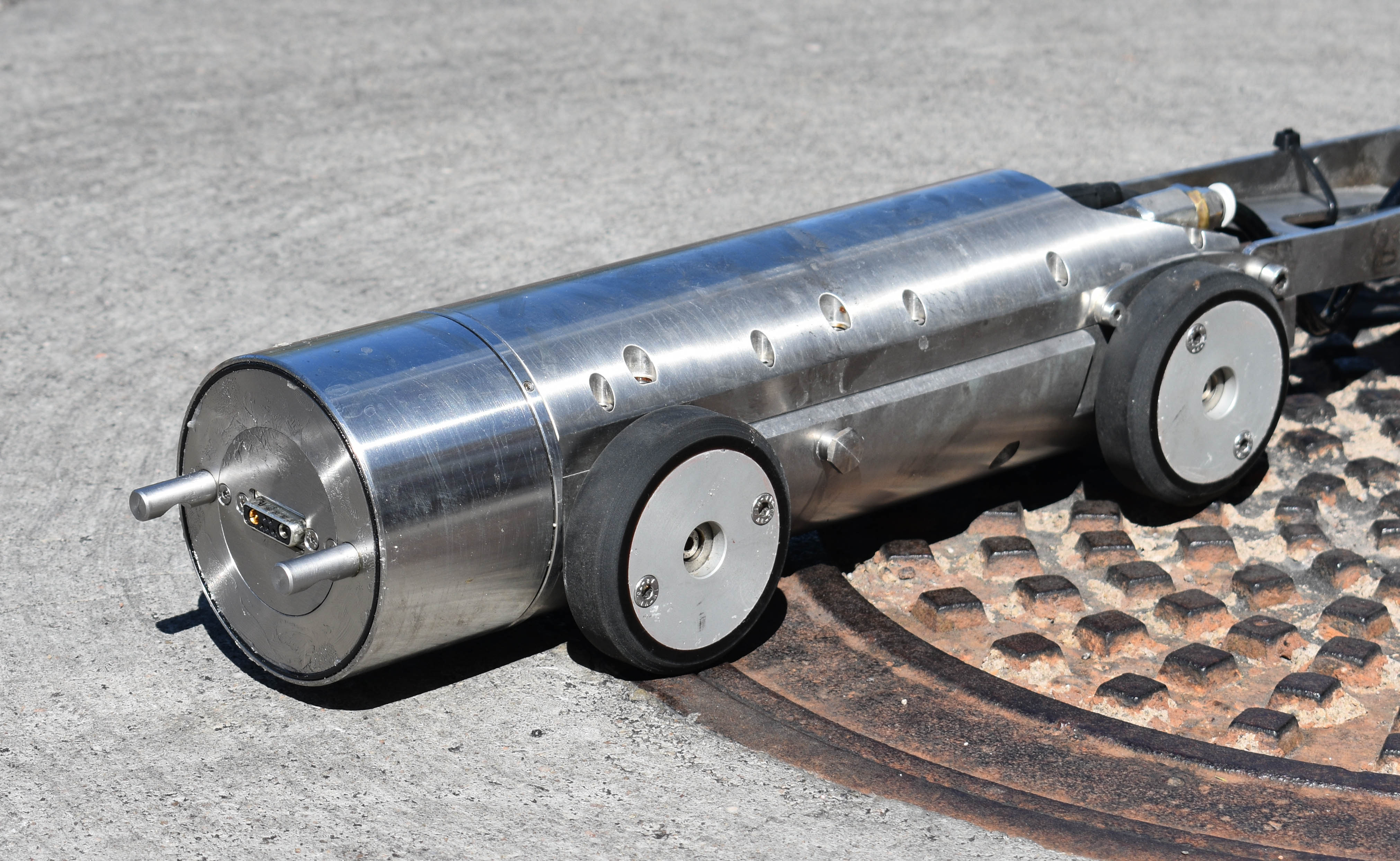

R125 - 6" (150mm)

The heavy duty stainless steel R125 Transporter is modular and compatible with various job- specific equipment modules for underground pipe inspection, cleaning, cutting and rehabilitation from lined 6"-15" (150-375mm) pipes. The compact R125 features a powerful 4x4 drivetrain, 400 degrees rotation and the twist-and-lock mechanism to exchange equipment modules within 60 seconds. The R125 uses the same control unit, high pressure unit, cable reel and high pressure hose reel platform as the R160.

Available R125 compatible modules

  • WJ125 Precision Water Jet Cutting Module 6" - 15"(150-375mm)
  • HA125 Lateral Reinstatement Cutting Module 6" - 15"(150-375mm)

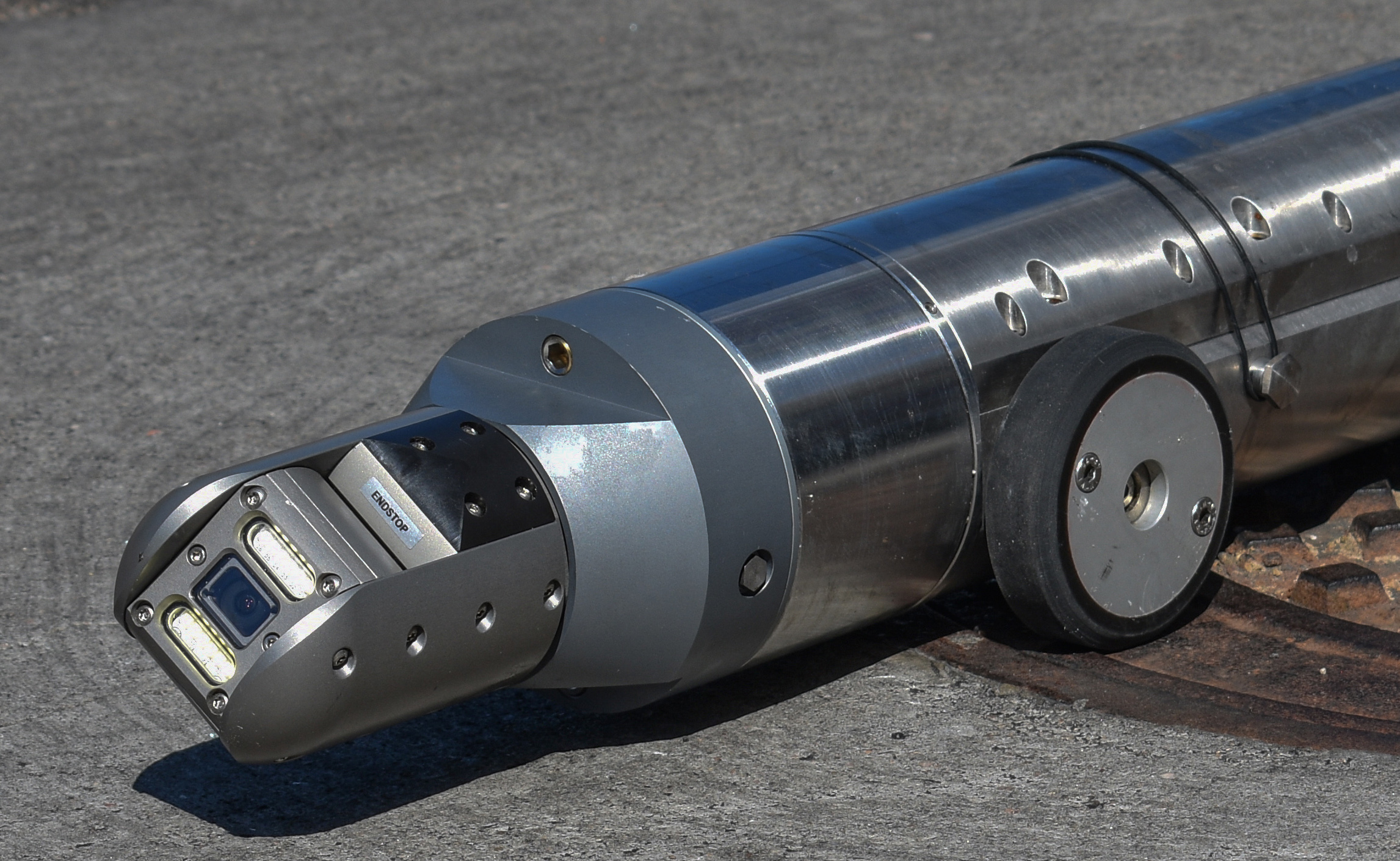

  • CAM125 CCTV Inspection and Spot Repair Module 6" - 15"(150-375mm)



Contact ID-tec or your local distributor for more information!

Download brochure

Transporter (crawler)

R125 - 6" (150mm)

The heavy duty stainless steel R125 Transporter is modular and compatible with various job- specific equipment modules for underground pipe inspection, cleaning, cutting and rehabilitation from lined 6"-15" (150-375mm) pipes. The compact R125 features a powerful 4x4 drivetrain, 400 degrees rotation and the twist-and-lock mechanism to exchange equipment modules within 60 seconds. The R125 uses the same control unit, high pressure unit, cable reel and high pressure hose reel platform as the R160.

Specifications

Scope of use: 6"-15" (150-375mm)
Powertrain: Electrical all wheel drive
Rotation (pan): 400° electrical

Features

  • Twist-and-lock-mechanism
  • Heavy-duty stainless steel
  • Roll and Pitch sensors (x-y)
  • Rotation sensor
  • Continuously pressurized
  • Temperature monitoring

Specifications

Scope of use: 6"-15" (150-375mm)
Powertrain: Electrical all wheel drive
Rotation (pan): 400° electrical

Features

  • Twist-and-lock-mechanism
  • Heavy-duty stainless steel
  • Roll and Pitch sensors (x-y)
  • Rotation sensor
  • Continuously pressurized
  • Temperature monitoring
