Large Diameter and Tank Cleaning

Large Diameter and Tank Cleaning

TWK300 - 40"-120" (1000-3000mm)

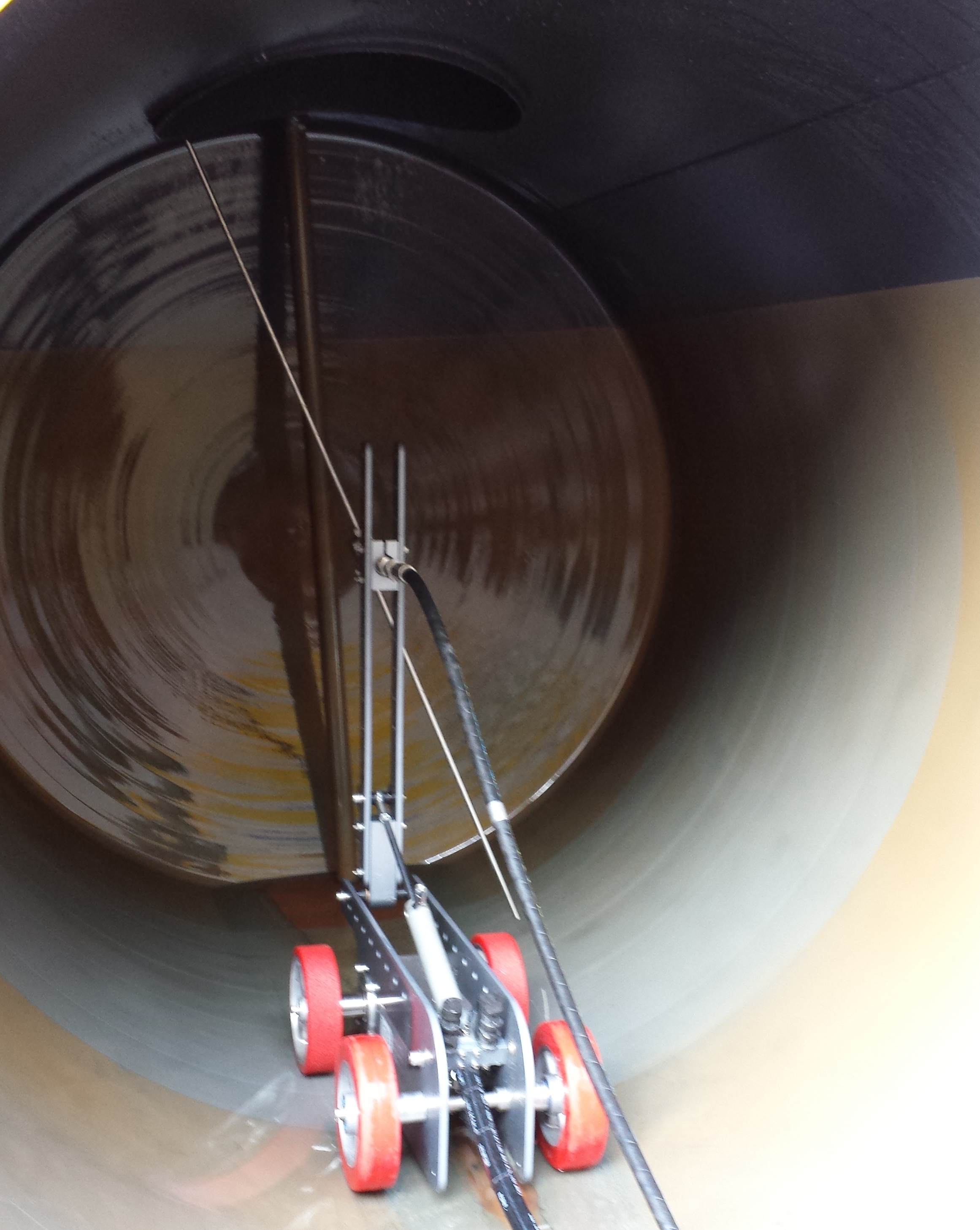

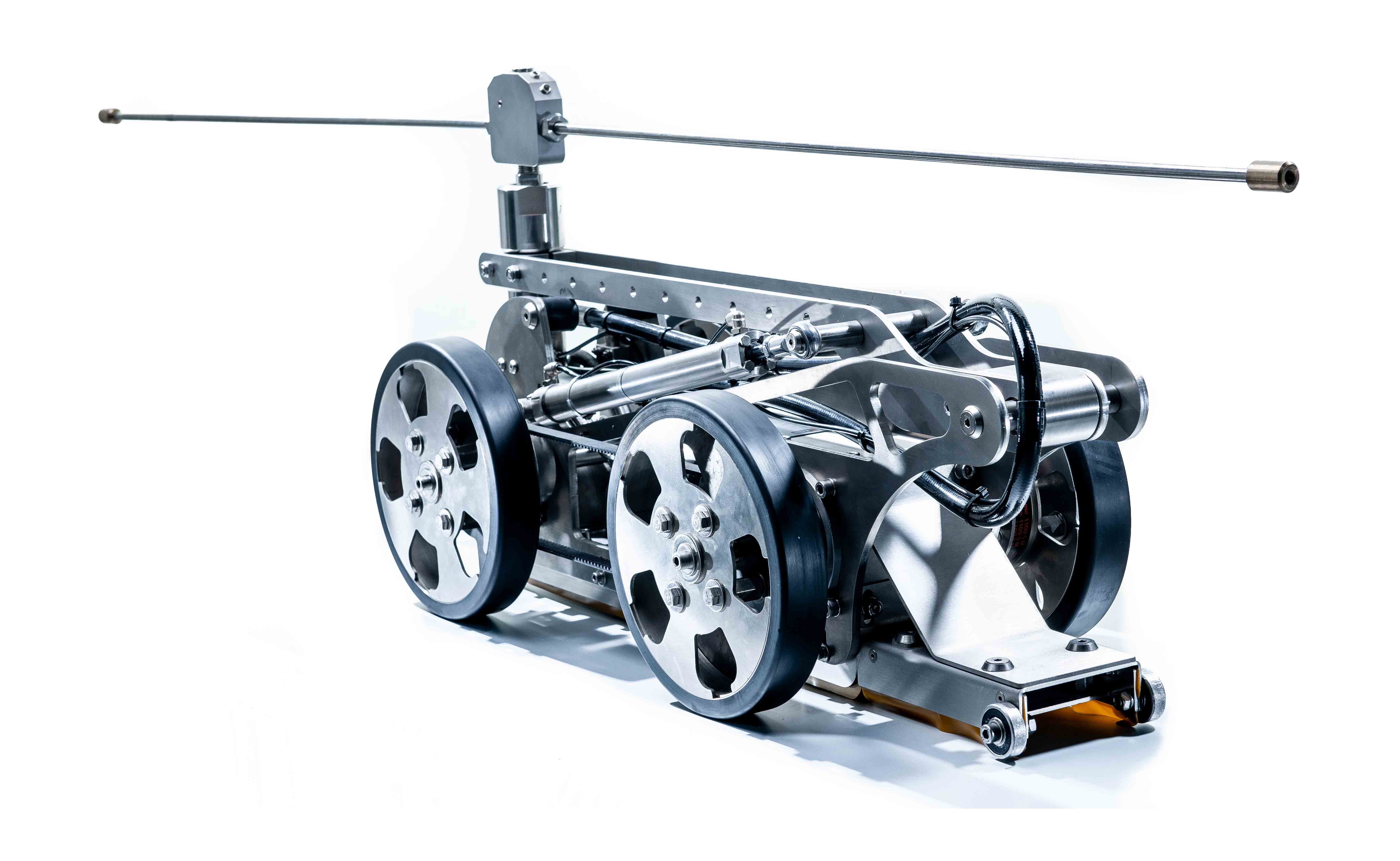

The TWK300 drive is a water driven robot system for cleaning large diameter pipelines and horizontal oil storage tanks of 40" - 120" (1000-3000mm) with pressures up to 36,250psi (2500bar).The TWK300 features a pneumatic foldable arm to fit 16" (400mm) and larger access points (manhole).

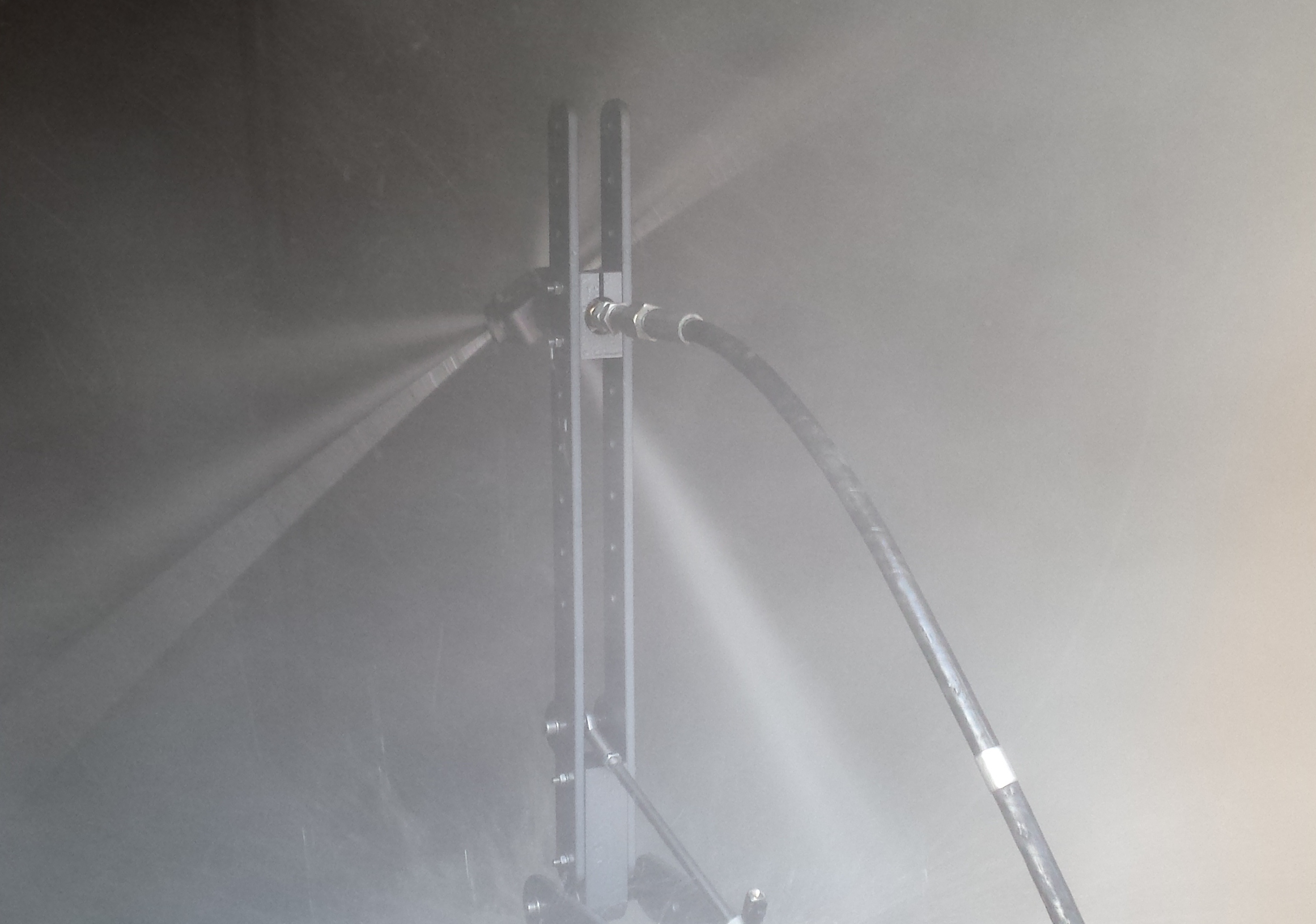

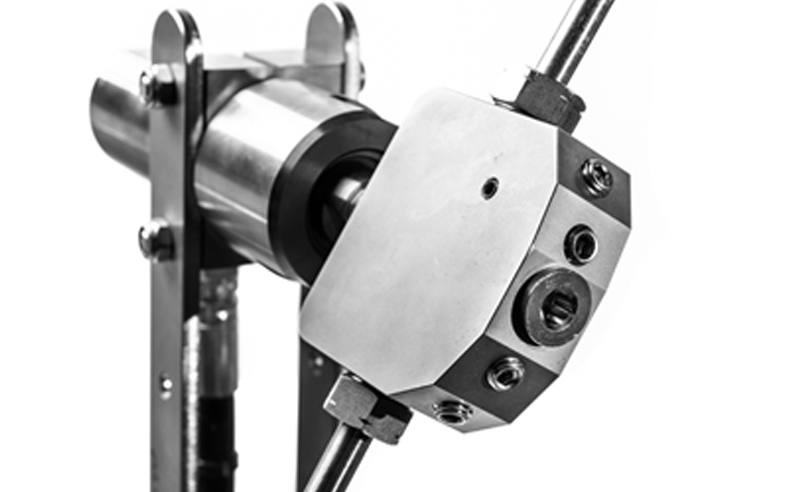

The swiveling rotor features two exchangeable lances for intense cleaning close to the surface. By switching the mechanic pressure valve the front facing nozzles in the rotor are activated to clean tank heads with the same equipment. The TWK300 drive can be used with hot water or chemicals and is certified Atex Explosion Zone 1 or Explosion Zone 0 (max. 7,250psi/ 500bar).

Compatible High-Pressure Units

The TWK300 drive can be used with ID-tec high-pressure units and hot water burners.



Contact ID-tec or your local distributor for more information!

Download brochure

Large Diameter and Tank Cleaning

TWK300 - 40"-120" (1000-3000mm)

The TWK300 drive is a water driven robot system for cleaning large diameter pipelines and horizontal oil storage tanks of 40" - 120" (1000-3000mm) with pressures up to 36,250psi (2500bar).

Specifications

Scope of use: 40” – 120” (1000-3000mm)
Min. Access Diameter: 16" (400mm)
Max. Pressure: 21gpm @ 22,000psi (80ltr./min@1500bar)
Max. Rotation: 1000 RPM
Temperature: 34-194°F (1-90°C)
Weight: 99lbs (45kg)
Dimensions: L33.5”xW14”x H16” (850x350x400mm)

Features

  • Exchangeable lances for intense cleaning close to the surface
  • Pressure switched forward facing nozzles for cleaning tank heads
  • Water Hydraulic driven
  • Atex Explosion Zone 1
  • CCTV Camera Module (optional)

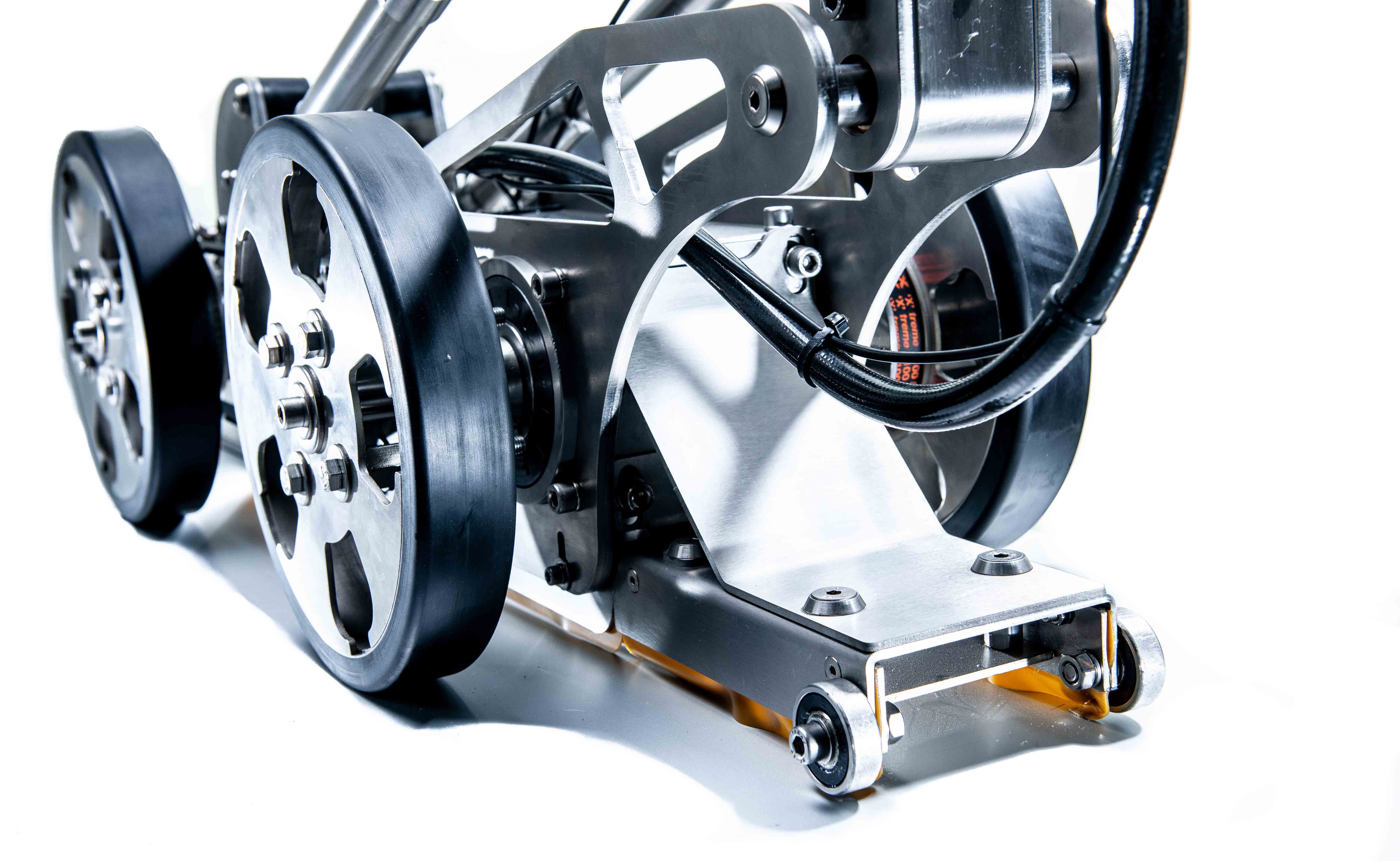

  • Vacuum Debris Removal (optional)
  • ATEX Explosion Zone 0 Certification (optional)
