Modular Sewer Rehabilitation System

Modular Sewer Rehabilitation System

SR-SERIES

The SR-SERIES is a modular system that features a multi functional transporter and various job- specific modules for underground pipe inspection, cleaning, cutting and rehabilitation.

A SR-SERIES system typically consists off:

  • transporter (crawler)
  • job- specific module
  • control unit
  • hybrid cable and high pressure hose reels
  • high pressure unit

and can be installed, completely self-sufficient with water and power supply, in a variety of vehicles.

Contact ID-tec or your local distributor for more information!

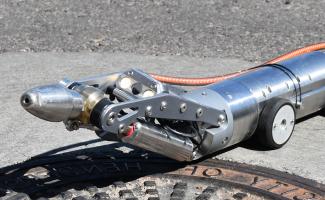

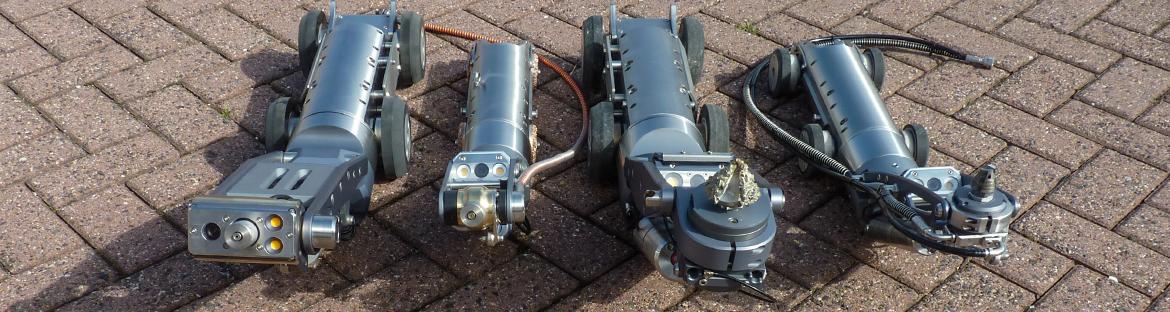

Precision Water Jet Cutting Module

WJ125 - 6"-15" (150-375mm)

The WJ125 Precision Water Jet Cutting module is compatible with the R125 Transporter for removing root balls, hardened fat, grease, cement, scale, calcium and mineral build- up and over- poured concrete from within 6" - 15" (150-375mm) pipes. The WJ125's jetting arm features 8" (210mm) ram lift and 120 degrees nozzle- tilt to ensure the right working angle in small pipelines and service lateral connections. The camera and LED lighting are placed behind the water jet. A variety of nozzles and water…
> Read more

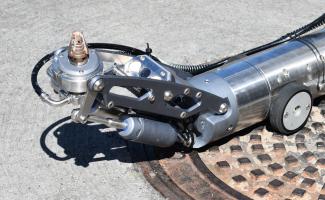

Lateral Reinstatement Cutting Module

HA125 - 6"-15" (150-375)

The HA125 lateral reinstatement cutter module is compatible with the all wheel driven R125 Transporter and built for lateral reinstatement and cutting protruding taps and services from 6" - 15" (150-375mm) pipelines. The 125 cutter arm features 8" (205mm) ram lift and 55 degrees pivoting of the cutter motor. ID-tec's compact, but very powerful, water driven, cutter motor delivers 3.4 Horse Power for fast lateral reinstatement and cutting protruding taps with precision and a smooth cut.
> Read more

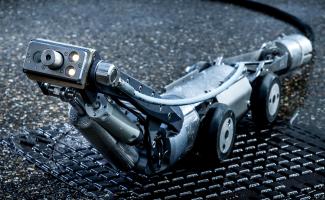

Precision Water Jet Cutting Module

WJ190 - 10"-36" (250-900mm)

The WJ190 Precision Water Jet Cutting module is compatible with the R160 Transporter for removing root balls, hardened fat, grease, cement, scale, calcium and mineral build- up and over- poured concrete from within 10" - 36" (250-900mm) pipes. The WJ190's jetting arm features 11" (270mm) ram lift and 100 degrees nozzle- tilt to ensure the right working angle in larger pipelines. The front facing camera and LED lighting are placed next to the water jet and tilt all together. A variety of nozzles and…
> Read more

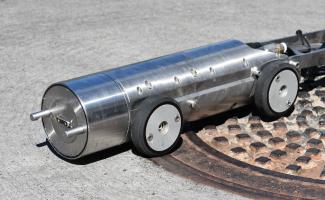

Transporter (crawler)

R125 - 6" (150mm)

The heavy duty stainless steel R125 Transporter is modular and compatible with various job- specific equipment modules for underground pipe inspection, cleaning, cutting and rehabilitation from lined 6"-15" (150-375mm) pipes. The compact R125 features a powerful 4x4 drivetrain, 400 degrees rotation and the twist-and-lock mechanism to exchange equipment modules within 60 seconds. The R125 uses the same control unit, high pressure unit, cable reel and high pressure hose reel platform as the R160.
> Read more

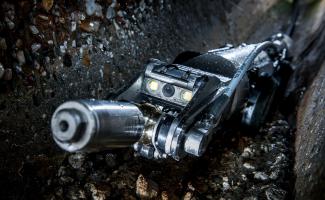

Precision Water Jet Cutting Module

WJ180 - 8"-20" (200-500mm)

The WJ180 Precision Water Jet Cutting module is compatible with the R160 Transporter for removing root balls, hardened fat, grease, cement, scale, calcium and mineral build- up and over- poured concrete from within 8" - 20" (200-500mm) pipes. The WJ180 module has a pan and tilt nozzle- attachment at the front that can be used with a variety of nozzles and water pressures up to 32,000psi (2200bar).
> Read more

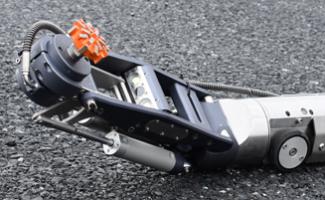

Lateral Reinstatement Cutting Module

HA195 - 10"-28" (250-700)

The HA195 lateral reinstatement cutter module is compatible with the all wheel driven R160 Transporter and built for lateral reinstatement and cutting protruding taps and services from 10" - 28" (250-700mm) pipelines. The 195 cutter arm features 11" (270mm) ram lift and 55 degrees pivoting. ID-tec's powerful, water driven, cutter motors deliver 3.4 or 7.8 Horse Power for fast lateral reinstatement with precision and a smooth cut.
> Read more

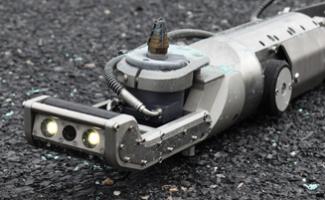

Lateral Reinstatement Cutting Module

HA165 - 8"-15" (200-375mm)

The HA165 lateral reinstatement cutter module features an infinite rotating, front- placed, color camera and is compatible with the all wheel driven R160 Transporter for lateral reinstatement and cutting protruding taps and services from 8" - 15" (200-375mm) pipelines. The HA165 module features a 3" vertical lift and can be used with ID-tec's powerful, water driven, cutter motors that deliver 3.4 or 7.8 Horse Power for fast lateral reinstatement with precision and a smooth cut.
> Read more

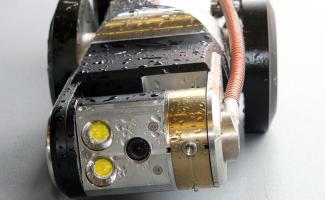

Precision Water Jet Cutting Module

WJ160 - 8"-15" (200-375mm)

The WJ160 Precision Water Jet Cutting module with front facing, infinite tilting, color camera provides a non- obstructed view when navigating through 8" - 15" (200-375mm) pipelines. The WJ160 is compatible with select cutting nozzles and water pressures up to 14,500ps (1000bar) to take care of root balls, hardened fat, grease and cement from pipes and lateral connections.
> Read more

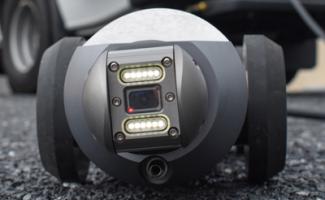

CCTV Inspection and Spot Repair Module

CAM160 - 8"-15" (200-375mm)

CCTV inspection of 8” (200mm) and larger pipelines can be done with the CAM160 CCTV inspection and spot repair module. The CAM160 is developed for main line CCTV inspection and features a controllable air coupling at the front for compatibility with most spot repair packers.
> Read more

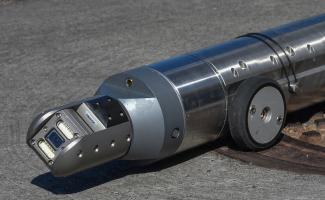

CCTV Inspection and Spot Repair Module

CAM125 - 6"-15" (150-375mm)

CCTV inspection of 6” (150mm) and larger pipelines can be done with the CAM125 CCTV inspection and spot repair module. The CAM125 is developed for main line CCTV inspection and features a pressure adjustable air coupling at the front for compatibility with most spot repair packers.
> Read more

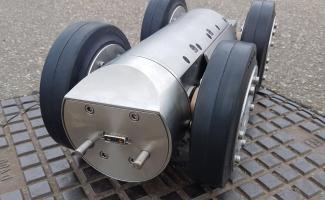

Transporter (crawler)

R160 - 8" (200mm)

The heavy duty stainless steel R160 Transporter is compatible with various job- specific equipment modules for underground pipe inspection, cleaning, cutting and rehabilitation from lined 8" (200mm) pipes and larger with a variety of wheels and spacers. The R160 features a powerful 4x4 drivetrain, 500 degrees rotation and the twist-and-lock mechanism to exchange equipment modules within 60 seconds. The R160 uses the same control unit, high pressure unit, cable reel and high pressure hose reel platform…
> Read more

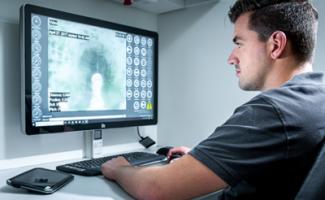

Control Panel and Operating Software

CP3D - ID-RIS

All movements of the transporter, job specific modules and reels are operated from two 6- axis joysticks. The ID-RIS operating firmware runs from a Touch Screen computer and displays live video and system data, but also features control buttons for the high pressure unit and other system components.
> Read more

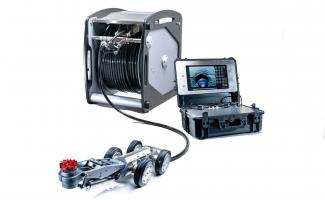

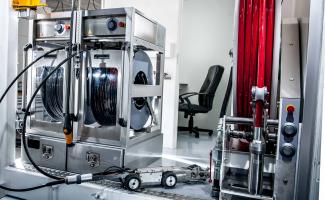

Cable and High Pressure Hose Reels

MH200R - MH200HD

The MH200 Hybrid Cable and High Pressure Hose Reels are installed in heavy duty Stainless steel frames with standard 400' (135m) of cable and high pressure hose. The reels feature cross- lead spindles, adjustable speeds and distance measurement and are controlled individual or simultaneous from the reels, the Control Unit or a remote control.
> Read more

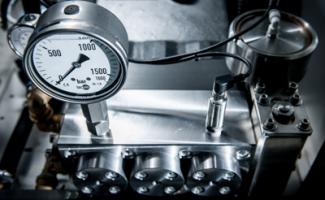

High Pressure Units

HDE - HDM

ID-TEC high pressure units allow continuous pressure control to adjust to different pipe materials and changing conditions. High pressure units are available with maximum pressures ranging from 7,250psi to 32,000psi (500-2200bar) depending applications and are driven by a combustion engine or electrical motor in combination with PTO generator.
> Read more

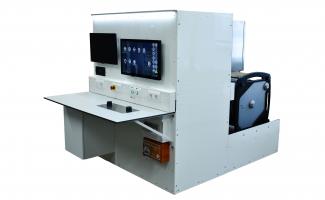

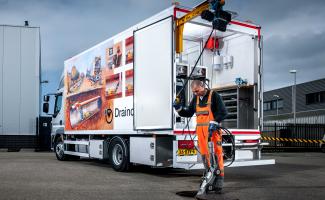

Vehicle Installation

The modular build vehicle systems for the SR-SERIES can be installed in a variety of standard vehicle types with different set-ups according to your special requirements, application, maximum pressure, available space and allowed weight. On board power and water supplies could be installed to make your vehicle system completely self-sufficient.
> Read more
