Cutting Protruding Taps
High power and precise controls allow fast, smooth and accurate service lateral reinstatement of all types CIPP and UV-cured liners, joint off-set corrections and cutting hammer taps and Protruding Laterals from lined 6" to 28" (150-750mm) Cast Iron, Cement, Concrete, Vitrified Clay and Plastic pipelines. The Powerful ID-tec reinstatement cutter modules feature (High Pressure) water-powered cutting motors and speed adjustable controls. Water lubricates the ceramic bearings and cools the bit for increased life expectancy.
Use the same SR-SERIES transporter with a Precision water jet cutting module to eliminate all obstructions and settled deposits and to prepare the pipelines for CIPP lining or any other type of no-dig rehabilitation.
Water powered cutting/ milling
Lateral Reinstatement Cutter Modules

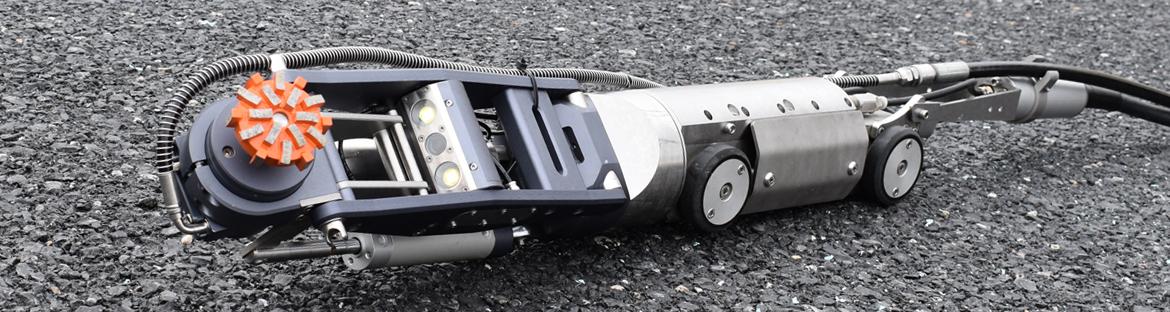

The available modules for service lateral reinstatement and cutting protruding taps are: HA125 for lined 6" - 15" (150-375mm), HA165 for lined 8" - 15" (200-375mm) and HA195 for lined 10" - 28" (250-700mm). Click products for technical specifications.
Lateral Reinstatement and Cutting Protruding Taps
Obstruction(s): Intruding lateral connection & Liner
Pipe Diameter: 400mm (15 3/4")
Pipe Material: Concrete
Water Pressure: 500bar (7250psi)
Used ID-tec equipment: R300 transporter, HA280 Water Driven Cutting Module, CP3D Control Unit, MH Cable and Hose reels, HDE37 - 500bar (7250psi) High Pressure Unit, Vehicle Installed.
Contact ID-tec or your local distributor for more information!
