Lateral Reinstatement Cutting Module
HA125 - 6"-15" (150-375)

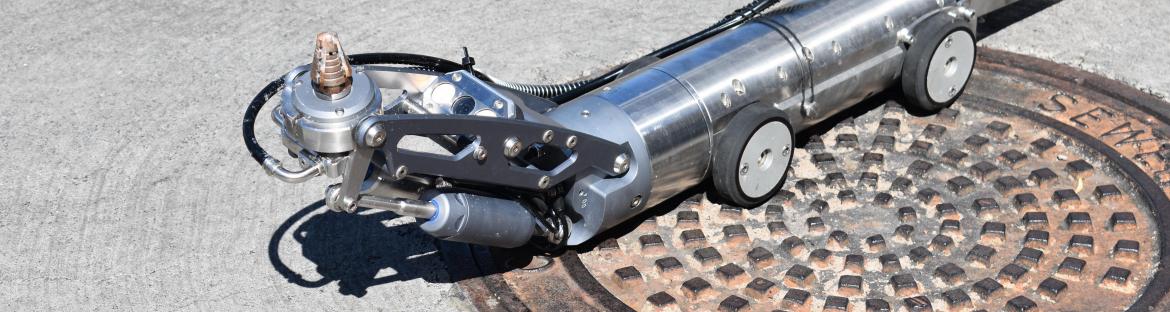

The HA125 lateral reinstatement cutter module is compatible with the all wheel driven R125 Transporter and built for lateral reinstatement and cutting protruding taps and services from 6" - 15" (150-375mm) pipelines. The HA125 cutter arm features 8" (205mm) ram lift and 110 degrees pivoting of the cutter motor. ID-tec's compact, but very powerful, water driven, cutter motor delivers 2.8 Horse Power for fast lateral reinstatement and cutting protruding taps with precision and a smooth cut.
The water lubricates the ceramic bearings and provides cooling to the cutter bit, which increases the life expectancy of the equipment.
Contact ID-tec or your local distributor for more information!Download brochure
